ELECTRICAL
SIEMENS InverterSINAMICS Inverter series SINAMICS V20
|
 |
SINAMICS V20
V20 Basic Inverter
1AC 200V ~ 240V
3AC 380V ~ 480V
0.12kW ~ 30KW
SINAMICS G Series
G120 Moduler Type
G150 G150 Cabinet Units
G130 Chassis Unit
G180 Chassis and Cabinet Units
DCM / DCP
SINAMICS DC MASTER
SINAMICS DCP

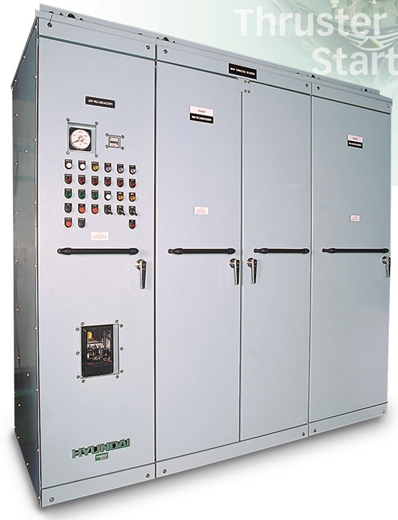

HYUNDAI ELETRICPower MV/LV Marin Energy Solution LOW voltage AC Drive
|
 |

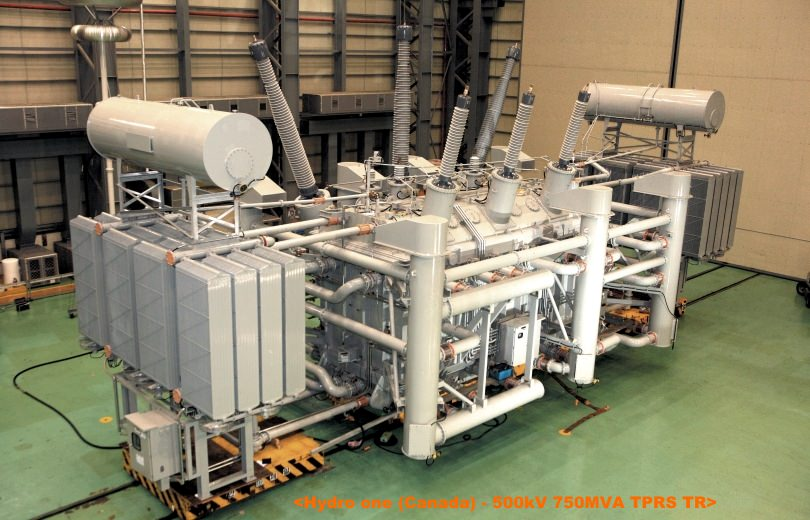

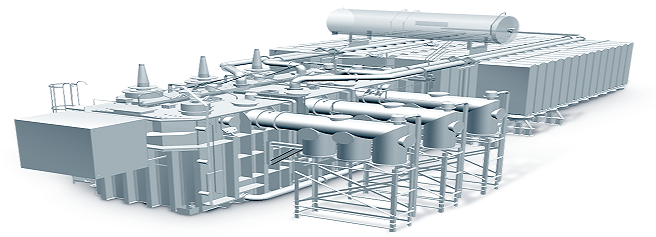

Power Transformer
Power transformer
Up to 800kV / 1,500MVA
Shunt reactor
Up to 765kV / 250Mvar

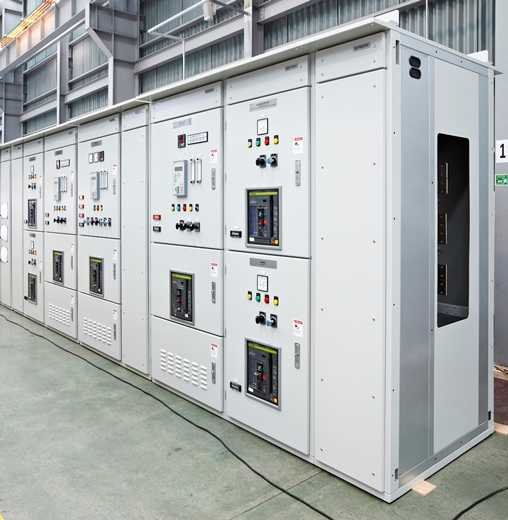

Switchgear
High reliability and arc safety
Long lifetime
minimal maintenance requirements
EMarine Switchgear
Diverse product family
optimized for ship use
High reliability from
over 40 years of experience
ILJIN ELETRICHeavy Electric Wire Division Materials Division Ultra-high voltage cable / connection material / insulated wire
|
 |

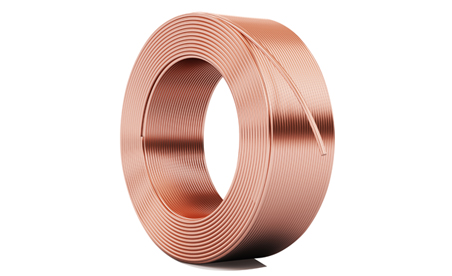

S C R
GRADE A" Electric copper only.
To produce copper rods with excellent characteristics Used in a wide range of industries as a basic material

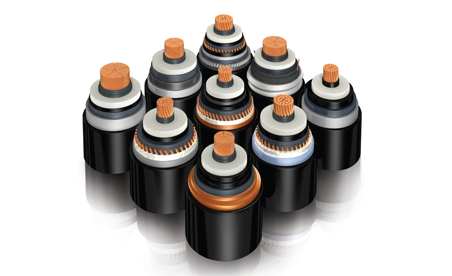

Ultra high Cable
The Max operating temperature
90℃ in normal condition
105℃ itransient state for a short time
250℃ iinstantaneous state of failure

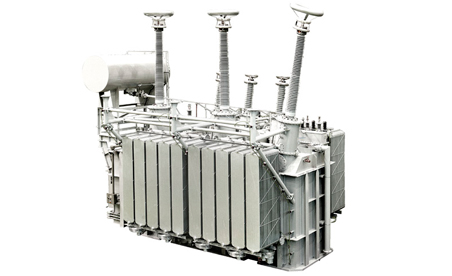

Transformer
Ultra high voltage transformer 66~765kV
From transmission to distribution
we even produce transformers for special furnaces

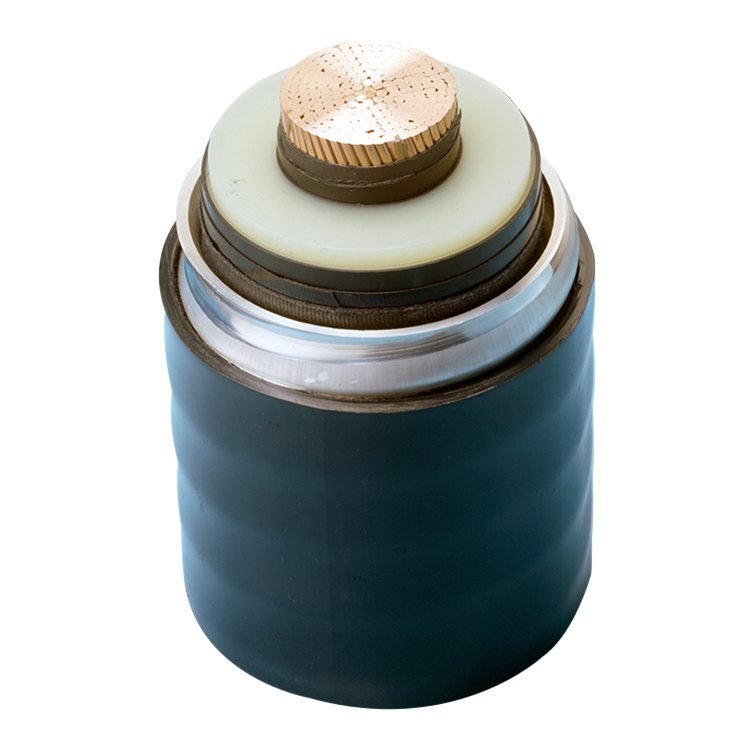

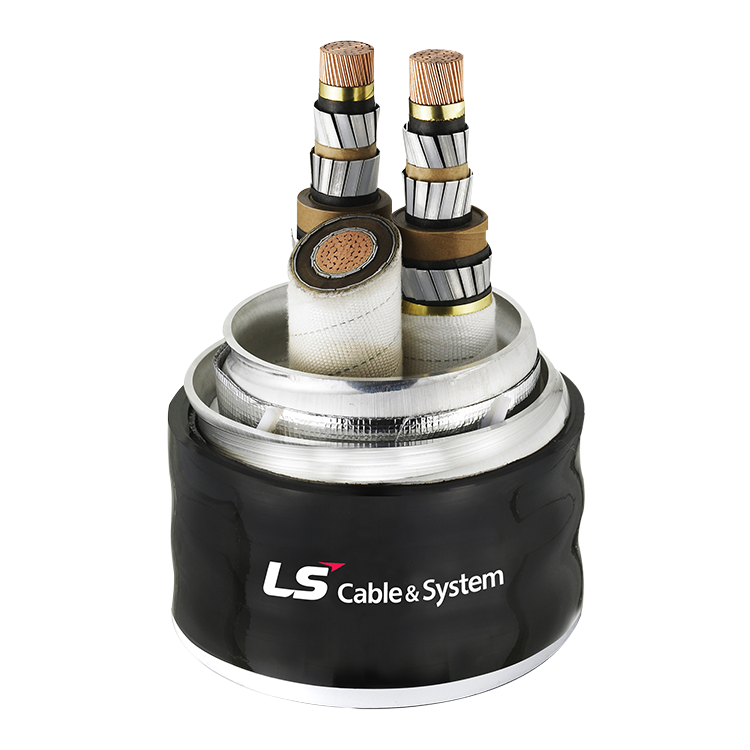

LS ELETRICHigh Voltage Cable
Ultra high voltage cable / submarine cable / distribution cable
|
 |
XLPE Insulation Cables
Easy installation, connection work Simple maintenance, weight, and thermal characteristics Low packaging equipment, low material cost
Superconducting cable
Distribution class superconducting cable
AC22.9kV 50MVA/AC22.9kV 120MVA
Transmission class exchange system
AC154kV 600MVA and 1GVA

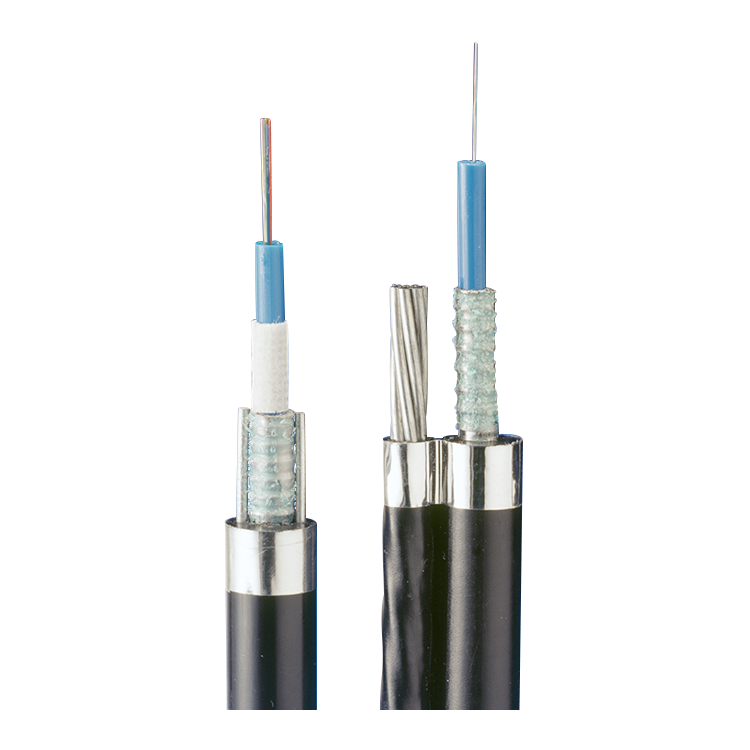

Optical fiber
Single Mode Optical Fiber
1260~1625nm wavelength used
Multi Mode Optical Fiber
850nm, 1300nm wavelength used

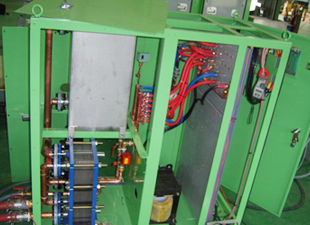

Stirrer for E.M.S |
 |
CCP E.M.S Stirrer

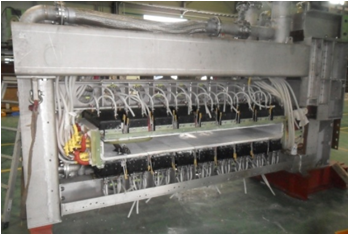

BAR HEATER Inductor
Coil & Cooling Plate
Copper, Silicon, Teflon, STS304, AL2O3
9500KW, 1.4KHZ
Flat Plate
Heathing Machine
Local Heathing for Vessels
Flat Plates For vessels
Treat Shift & Gear
Partial Heat Treatment
Gear Partially By Heating
Parts of Automobiles
50kw~200kw
