Geared Motor Reducer

Power 0.2kW ~ 15kW (1/4HP ~ 20HP)
Reduction gear ratio 1/5 ~ 1/120
Product type
Horizontal / Vertical / Line Power

Worm Reducer

Power : 0.2kW ~ 75kW
Reduction gear ratio :1/10 ~ 1/60
(2 Stage : 1/100 ~ 1/3600)

Planetary Gear Reducer

Ratio:Wide range of Gear ratio values
Power:7.5 kW 8.4kW 9kW
Torque:7,500 ~ 11,000 Nm

Helical Bevel

Power:0.2kW ~ 2.2kW
Reduction ratio:1/15 ~ 1/60
Mighty Worn Reducer
20% higher efficiency

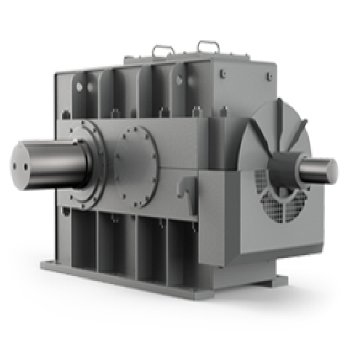

Gear Box(Parallel Shaft)

Power:1 ~ 5,000 kW
Reduction ratio
1~1/6.3 1/6.3~1/22.4
1/22.4~1/100 1/112~1/500

Gear Box

Right angle shaft
Power:1 ~ 3,500 kW
Torque:62,200 kg-m

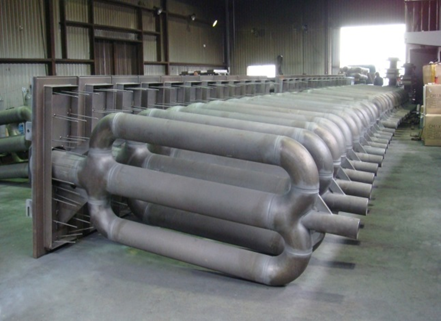

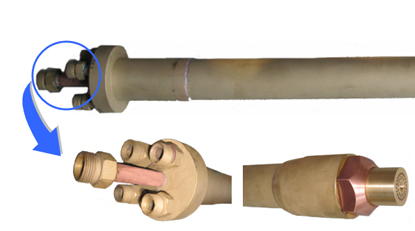

Radiant Tube

Double ‘P’ Tubes
Straight tubes
U, W-tubes
Bungs, mounting flanges and insulations

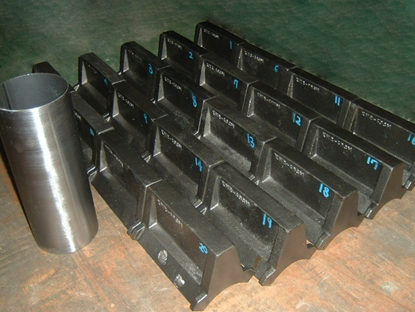

Skid Rail

Material Symbol
PCF-03 / KNC01
KHR20CM / KHR40CM
SCH13 / SCH24

Hearth Roll&Roller

Material Symbol
HRSC 12 / HRSC19
DCH23 / SM35C
-

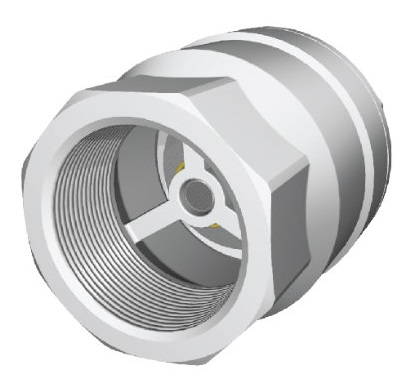

PAS

Size:1″(25A) ~ 2″(50A)
Max. Pressure : 20bar
Test. Pressure(Body):30bar
Material : Stainless Steel

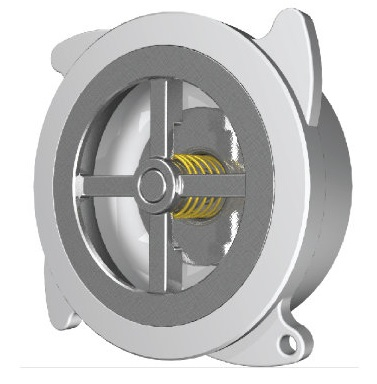

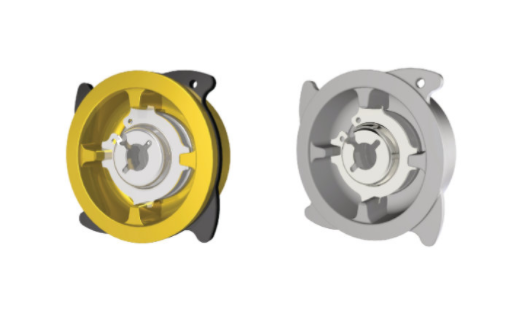

PC

Size : ½”(15A) ~ 4″(100A)
Max Pressure : 16bar
Pipe connections : Wafer

PA22

Size : 1″(25A)~8″(200A)
Max. Pressure : 40bar
Pressure and Temperature :
40bar / 120℃

Hot Strip Cross
Head RA Head Liner

Cold Strip
Oilless R-Liner

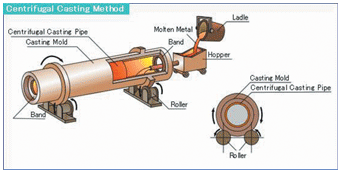

For Casting of Nonferrous
Metal Bearing

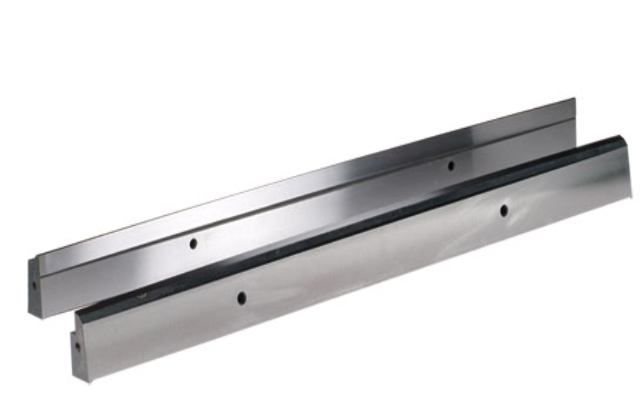

Crop Shear Curved Knife

cut the vertical and end hem of the slab
cut 20-60mm thick
working temperature in MIN 900℃

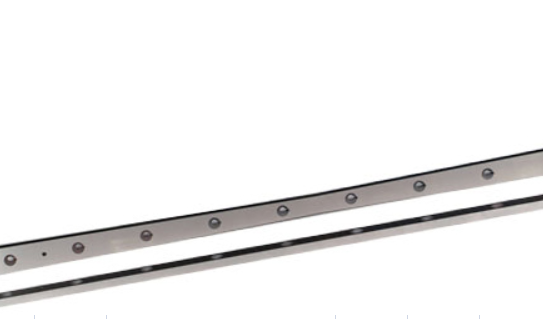

Flying Shear Knife

cutting hot milling COIL
0.2~3.2mm plate / cold milling
1.0~12.7mm Sheet / hot milling

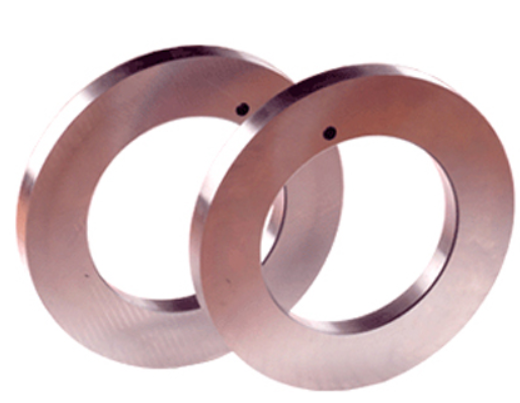

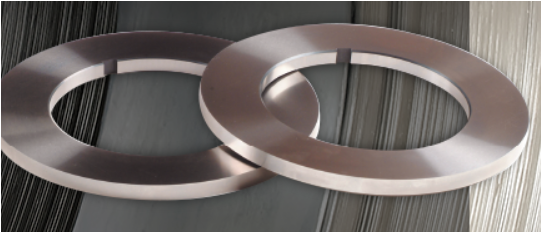

Side Trimmer Knife

cutting hot milling coil
0.2~3.2mm sheet/cold milling
cut 1.0~12.7mm sheet/hot milling

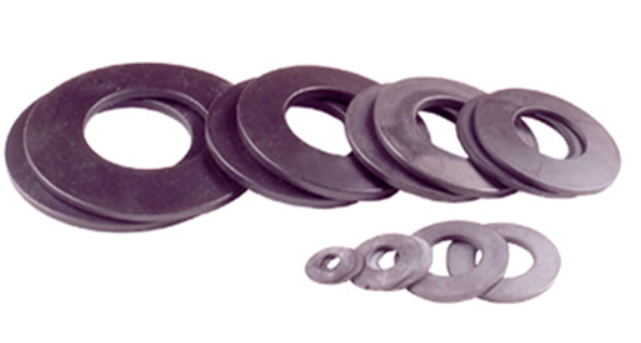

Disk Spring

cushion equipment to resist
the weight of security valves in an
atomic power plant huge industrial
M/C's cushion eqipment control valves

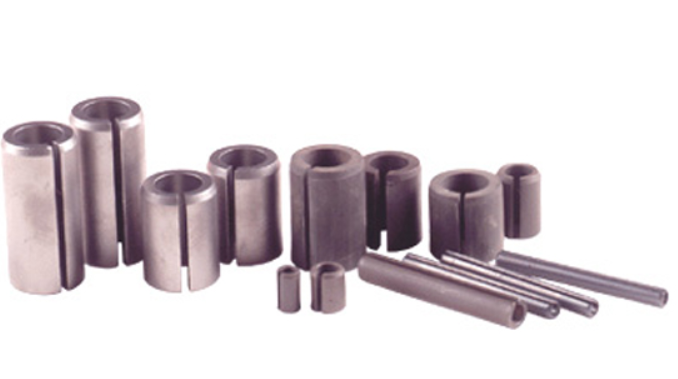

Spring Pin

action and called role pin
self rock pin

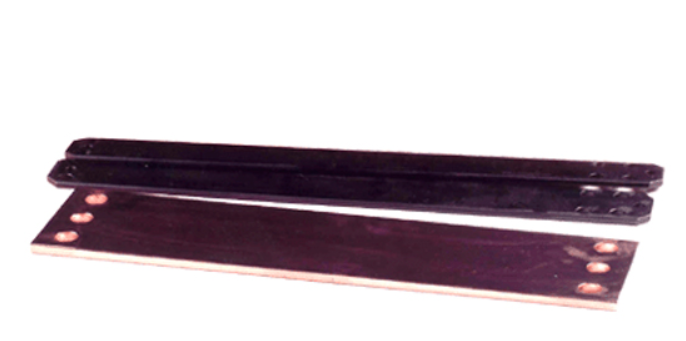

Plate Spring

It is attached to the industrial equipment
to absorb the impact on the machine

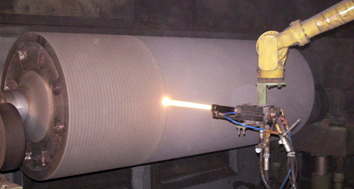

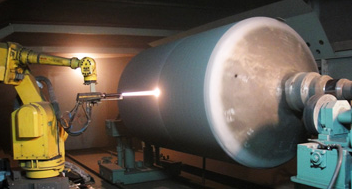

GI POT ROLL

Usage : HVOF
Timber : WC
Prevent Zinc Dross-UP
Heat Resistence

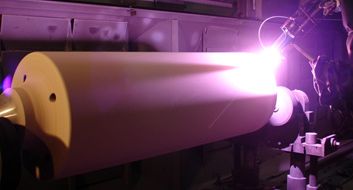

AI POT ROLL

Usage : Plasma Spray
Timber : Ceramic
Prevent Al Dross-up
Heat Resistance

HEARTH ROLL

Usage : HVOF / Plasma Spray
Timber : Ceramic
Prevent Mn Build-up
Heat Resistance

SERVO VALVE

Servovalve
Servo-Propotional
Digital-Servovalve
PQ & Pressure Control

Standard Brushless Servo

최대 토크 : 0.5 ~ 240 [Nm]
정지 유지 토크 : 0.15 ~ 77 [Nm]
정격 토크 : 0.14 ~ 48 [Nm]
정격 속도 : 2200 ~ 9000 [rpm]

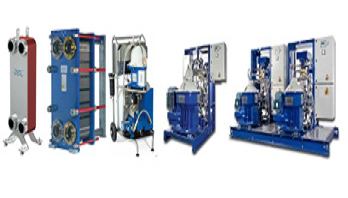

Heat Exchanger

Working pressure range : 32Bar
Working temperature : -160~225℃
Cooling capacity : 16~343KW
Cover plates: Stainless steel

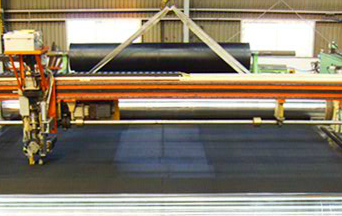

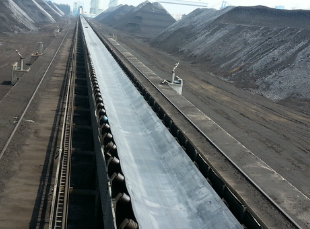

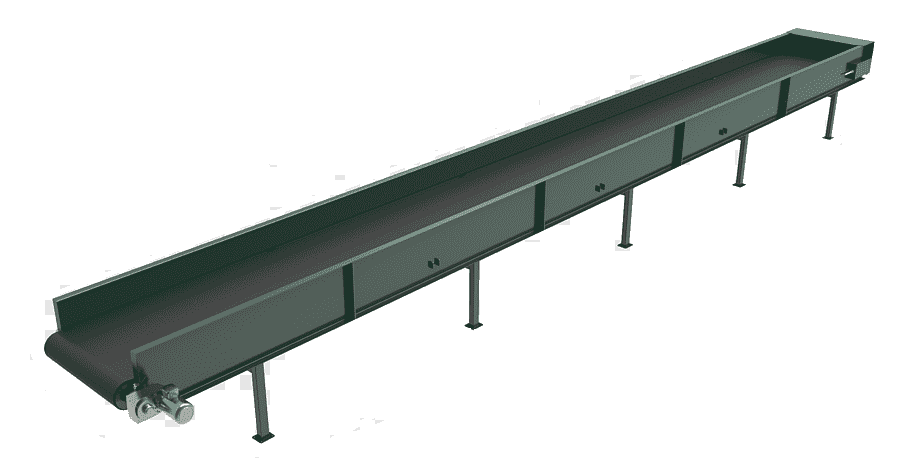

Conveyor Belt

For : Lime Stone, Rock Quarry, Coal
textile conveyor belts feature various
cover stock properties and a single-
multi-ply textile tensile member.

Steel Cord Conveyor Belt

Steel cord conveyor belts
ensure maximum conveying
performance even under grueling
stress conditions

Filter Belt

Filter belts are used in
specialized dewatering process
equipment for separating solids from
liquids in a slurry.

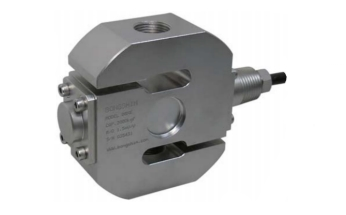

LOADCELL

TR(50Kg ~ 10T) / CR(200kg ~ 20T)
BCCU(10 ~ 50T) / OBU(1kg ~250KG)
OBBS(20~500Kg) / OBBA (10~300Kg)
OSBH (200Kg ~ 10T) / OSW (500Kg ~ 5T)

Explosion Proof Type

DBXE (Compression & tension Load Cell)
BMDX (Specially designed for hopper)
OSWX (Shear Beam Load Cell)
CLWXE (Compression Load Cell )

Torque Sensor

BRDM-N (Rotary Torque Transducer)
20 N-m ~ 500 N-m
BRTL-N (Reaction Torque Transducer)
BRSF-N (10 N-m ~ 500 N-m)

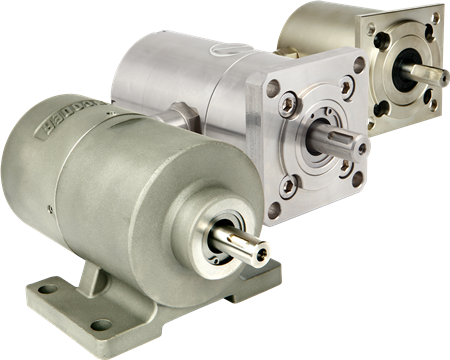

Rotary Sensor

main body does not use anyelectronic
part, its excellent performance
has been recognized for its excellent
performance in harsh environments.

Encoder

rotary magnetic encoder designed for
use in harsh environments
Output signals are provided in industry
standard absolute position format

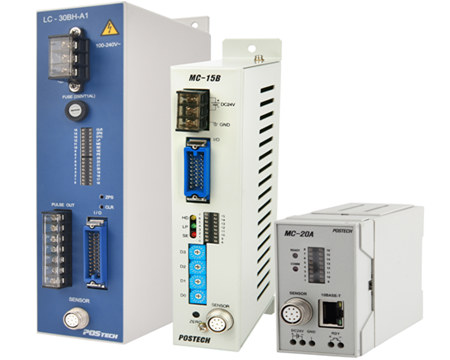

Converters

Output signals are provided in industry
standard absolute position format
Profibus, SSI, Ethernet communication
are available depending on the product.
